Description
Lora gateway GW-01-DIN for indoor usage in DIN rail enclosure with 220VAC supply.
Industrial SX1301 based multicannel LoRa concentrator.
Hardware.
GW-01-DIN is open source LoRaWAN gateway. OpenWrt driven. Based on Semtech’s multi-channel LoRa concentrator SX1301 and IMX6ULL processor.
Out of box ready for use device. Two hardware version of device exists depending on frequency band: 868 MHz or 915 MHz (you have to use corresponding global_conf.json file).
Antenna.

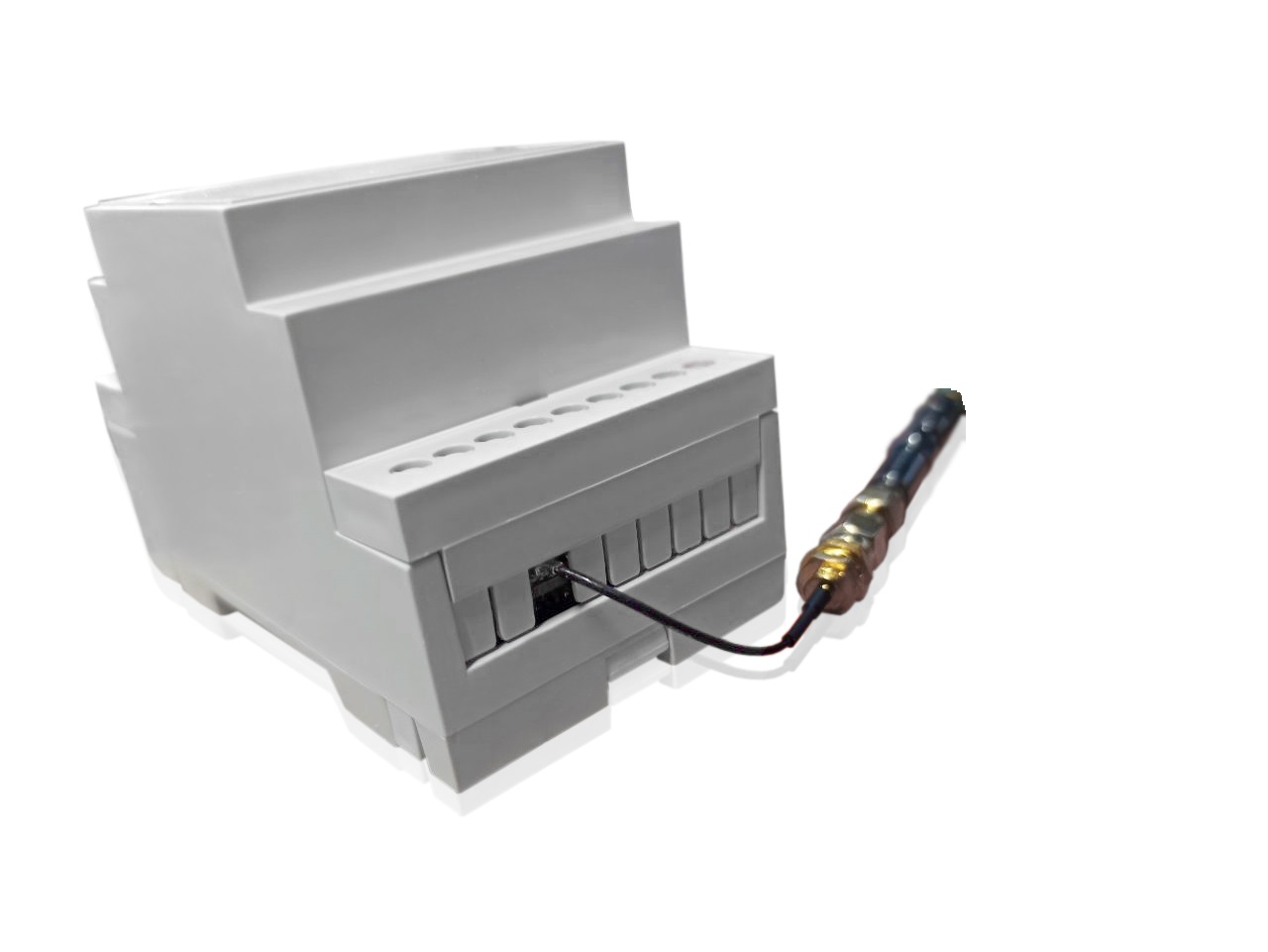

By default, we ship base station with development antenna (10 cm length on the photo).
u.FL connector used by default. SMA connector might be soldered by request.
Software.
Based on lora-gateway and packet-forwarder. GW-01-PoE comes with preinstalled OpenWrt image.
Source code provided to build image from sources to customize it.
Packaging:
- Lorawan gateway GW-01-DIN;
- External antenna;
Specification:
- Temperature range from -30°C to 70°C;
- Power supply – 220VAC;
- Sensitivity: -139 dBm;
- Frequency: 868 MHz or 915 MHz;
- External antenna;
- Ethernet 10/100;
- Dimensions 90х70х50 mm without antenna;
- LoRaWAN protocol implemented by lora-gateway и packet-forwarder libraries;
- IC SX1301 (8 channel LoRa concentrator);
- Range up to 2.5 км among the buildings, and up to 10 kilometers on open space.
