IMX6ULL SOM

SOM

Onboard ICs

CPU	NXP IMX6ULL	MCIMX6Y2
RAM	256 Mb DDR3	MT41K128M16JT
FLASH*	16...32 Mb SPI	W25Q64/128
ETH**	2x PHY IC	KSZ8081RNA
WiFi**	1x PHY IC	WF200C

* soldered flash size can be customized depending on memory requirements and to reduce cost.
** amount of soldered PHY ICs can be customized depending on customer requirements

Specification

Temperature Range
сommercial	0 to +70°C
industrial	-40 to +85°C
Techanical
size	42 x 45 mm
height	1.2...2.0 mm
pitch	1.5mm
antenna connector	u.FL
Electrical
power supply	5 VDC

Interfaces*

2 x ETH

2 x USB

2 x CAN

1 x SAI

1 x Video Parallel

2 x SPI

2 x I2C

2 x UART

1 x SDHC

20+ GPIO

1 x JTAG**

* Provided set of interfaces given for default Software/Hardware configuration provided by BSP and development board. It is possible to extend amount of required interfaces by reducing amount of another interfaces by pins reconfiguration.
** JTAG interface pins shared with SAI (Audio interface). It limits flexibility of kernel debugging for Board Support Package (BSP) configurations that uses audio interface.

Hardware environment

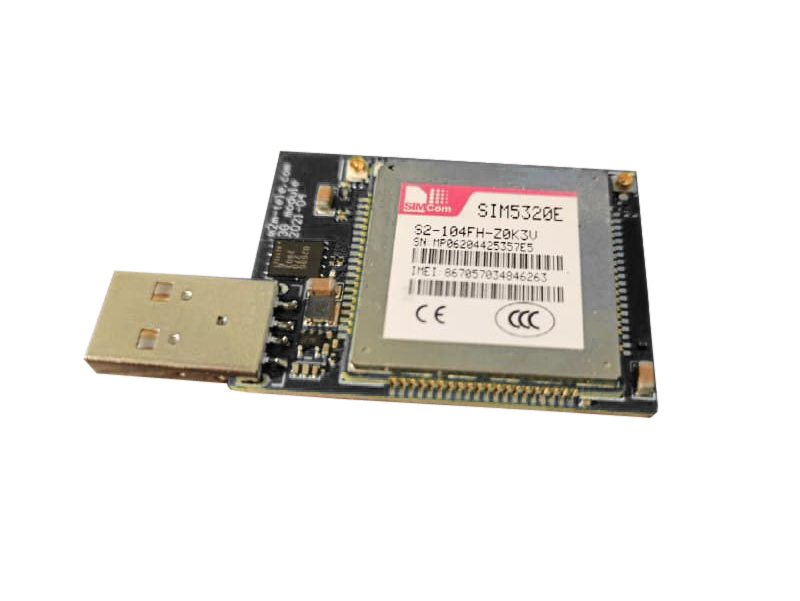

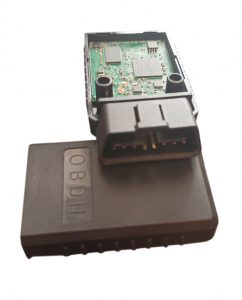

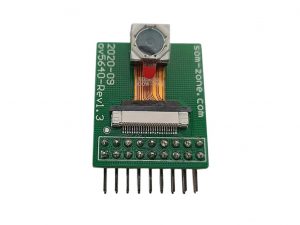

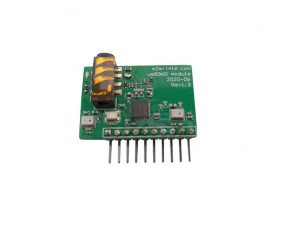

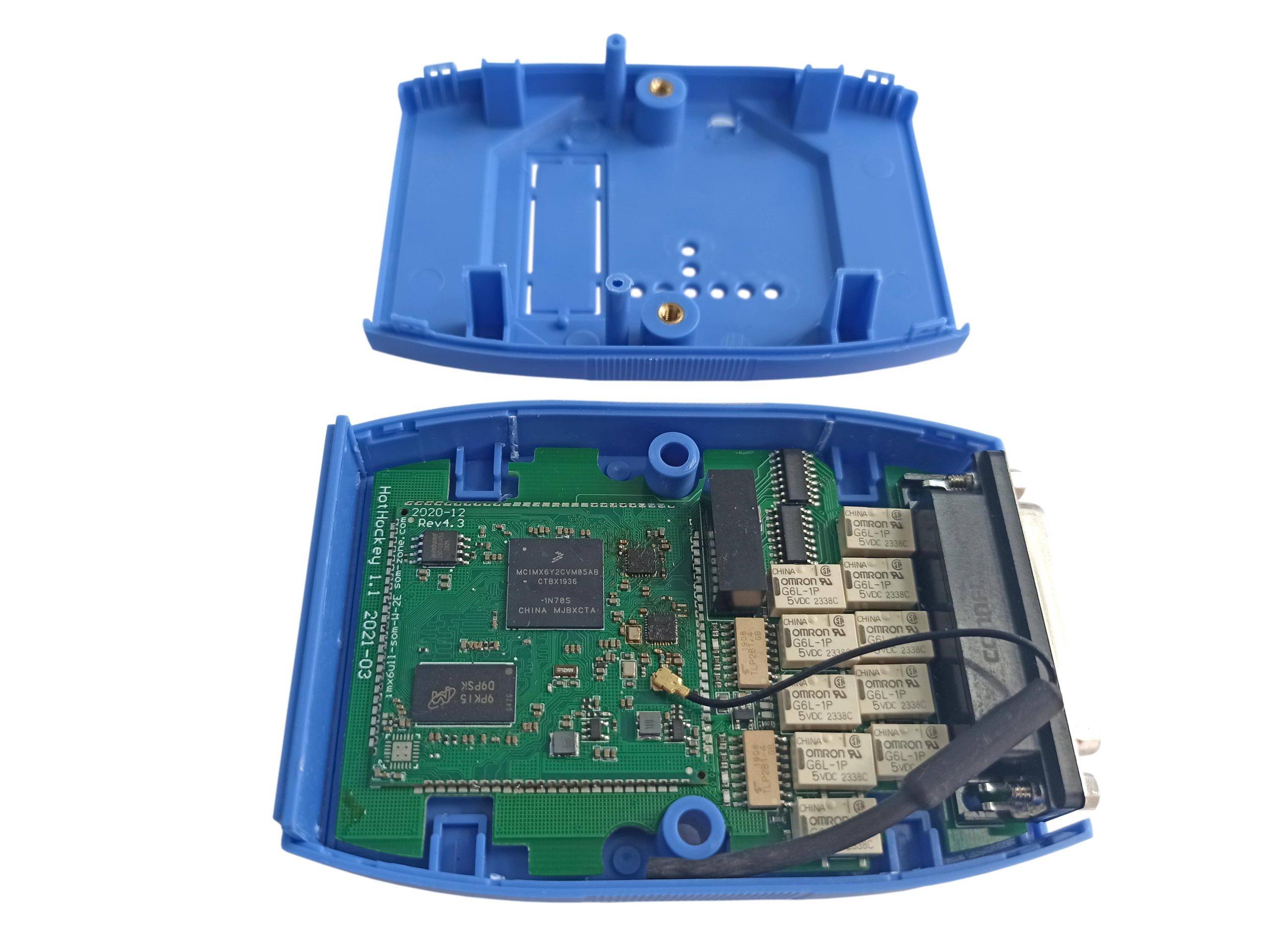

Open Hardware Development Board and reach set of extension modules provides abilty to get wide range of out of box solutions that reduce time to market for product you are going to develop.
