SX1301-mpcie

$97.00

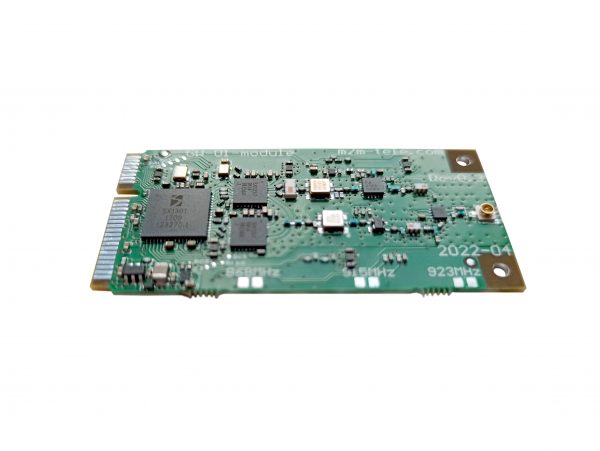

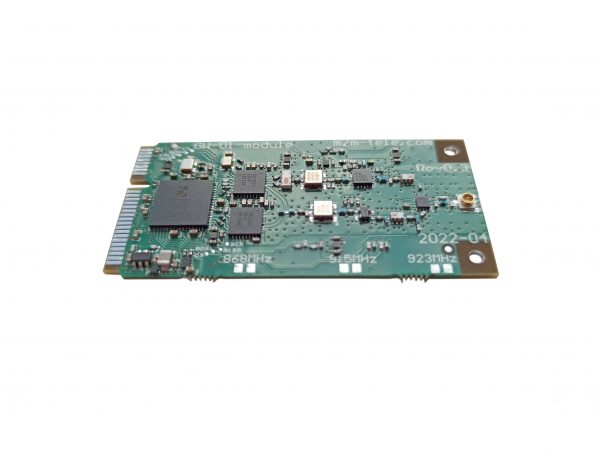

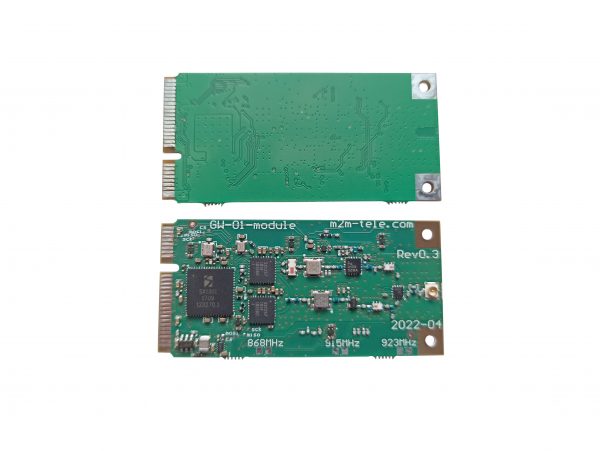

SX1301 lora concentrator module. Low cost way to integrate LoRaWAN gateway anywhere.

Clear
SKU: SX1301-mpcie Category: Tag:

Description

SX1301 + SX1257 based LoRa concentrator mini PCI express module that might be used to build own LoRaWAN gateway.  Might be driven via SPI by any Linux or bare metal CPU.

Specification.

  • Temperature range from -30°C to 70°C
  • Power supply 5 VDC
  • Sensitivity: -139 dBm
  • Frequency 868 MHz or 915 MHz.
  • Antenna connector: – U.FL Receptacle;
  • Sizes: 57 x 27 mm;
  • Thickness: 1mm;
  • IC SX1301 ( 8 channel LoRa concentrator) + SX1257;
  • Interface: SPI;
  • Compatible with any mini PCIepxress connectors (AAA-PCI-049-K01 for example);
  • Fixation: M2 screw (pcb solderable M2 standoff might be used, 9774040243R for example);
  • Range up to 2.5 км among the buildings, and up to 10 kilometers on open space.

Software.

  • Compatible with official Semtech libraries lora_gateway and packet-forwarder to implement Lorawan gateway functionality;

Includes:

  • LoRaWAN module
  • RF antenna

Pinout:



Additional information

Weight 10 g
Dimensions 5.7 × 2.7 × 2.2 cm
