GW-01-WI-FI

$140.00

lorawan gateway GW-01-WI-FI. 8 channel. Low Cost. Open Source. Fully functional. Wi-Fi interface.

SKU: GW-01-WIFI Category: Tag:

Description

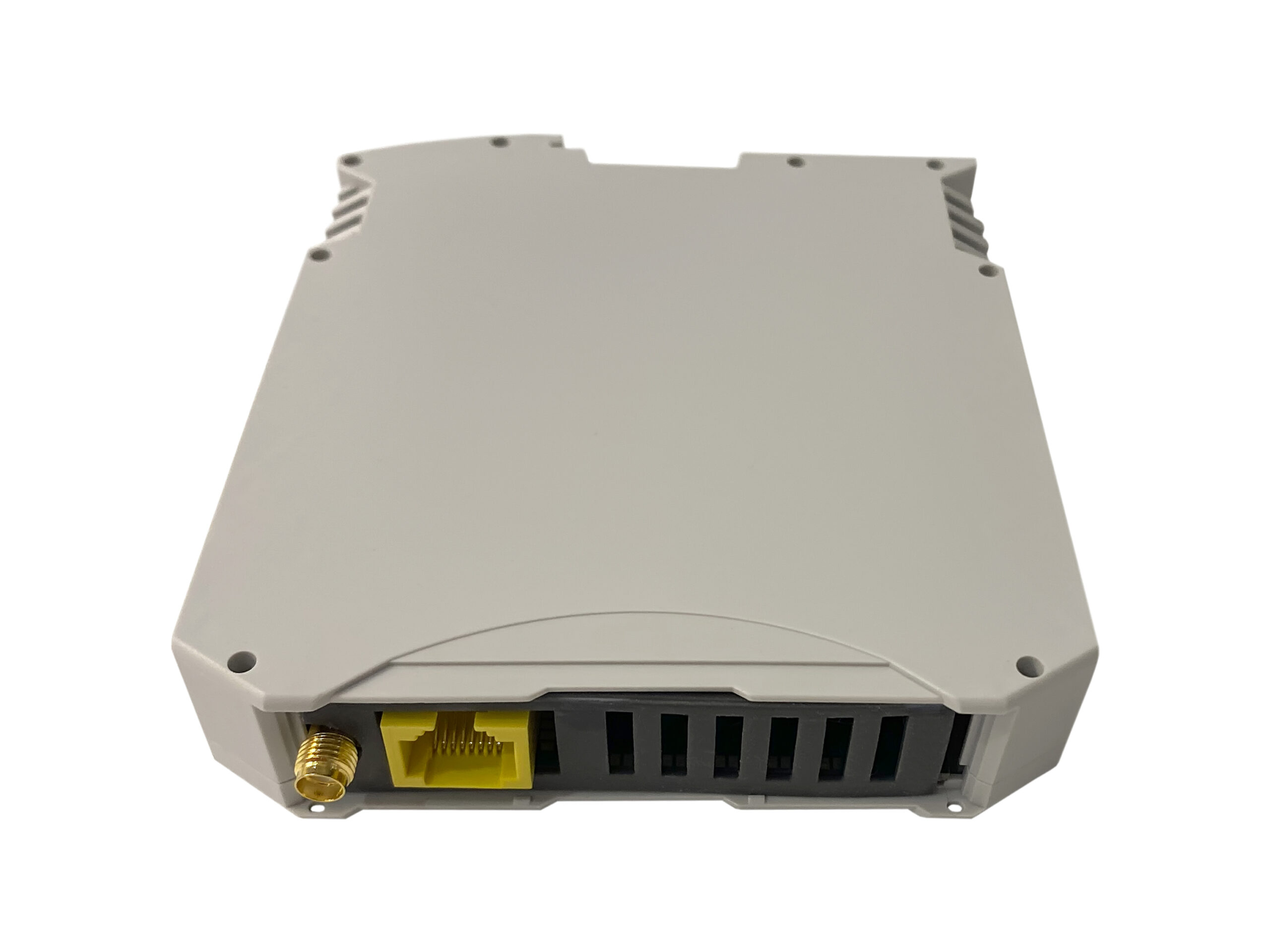

Lorawan indoor gateway GW-01-WI-FI.

Multi channel open source low cost LoRaWAN gateway with WI-FI interface.
Hardware.
GW-01-Wi-Fi is open source low cost OpenWrt driven LoRa gateway compatible with LoRaWAN protocol. Based on SX1301  – 8 channel LoRa concentrator that implements LoRa physical interface and NetSoM – SoM based on NXP’s IMX6ULL microprocessor. WiFi interface based on WF200 PHY IC.
Depending on required frequency band two types of device can be ordered: 868 MHz or 915 MHz;
Software.
lora-gateway and packet-forwarder implements functionality of LoRaWAN gateway. GW-01 comes with pre-flashed OpenWrt lorawan_gateway_wifi config image. Open source code gives you freedom to customize software to fit your needs. Same source code used for LoRaWAN PoE gateway GW-01-Poe and NetSoM development board.
Packaging:
  • Lorawan gateway GW-01-WI-FI;
  • External antenna;
  • Micro USB charger;
  • Ethernet cable;



Specification:
  • Temperature range from -35°C to 70°C (not a mistake! Built using industrial components);
  • Power supply USB 5 VDC;
  • Sensitivity: -139 dBm;
  • Frequency: 868 MHz or 915 MHz;
  • External antenna;
  • WiFi 802.11b/g/n 2.412GHz ~ 2.484GHz;
  • Dimensions 110х75х27 mm without antenna;
  • LoRaWAN protocol implemented by lora-gateway и packet-forwarder libraries;
  • IC SX1301 ( 8 channel LoRa concentrator);
  • Range up to 2.5 км among the buildings, and up to 10 kilometers on open space.



Notes.

Depending on frequency used in your country you may need to configure gateway with suitable frequency plan. But it is can be easily done just by replacing single text file named global_conf.json. You can find some explanation of frequency plans here. Just get corresponding configuration file and replace existing global_conf.json with new one. For example you need use EU868 frequency plan with 868MHz gateway in Europe. US915 and 915MHz gateway in USA. Tell us if you want to get pre-configured gateway and we will do it before ship it.



Resources.



Fast prototyping.
If you are going to prototype LoRa based IoT solution you may need to get three main components of LoRa network:
  • LoRaWAN gateway;
  • At least one end node;
  • web server;
Usually, for prototyping and demonstration of MVP solution it is no matter what is represents Server side. The easiest way to get it based on thethingsnetwork cloud. Just register and get it working. More simple way to use cloud.m2m-tele.com, – you will automatically get free account for this platform at ordering GW-01. Email as to get free account without ordering the gateway. You can use guest account – guest/guest1 to try it. This cloud built on loraserver with some modifications. Any way to configure gateway with any server you need to modify jsut three params in global_conf.json mentioned above:
Example of gateway registered on TTN:
